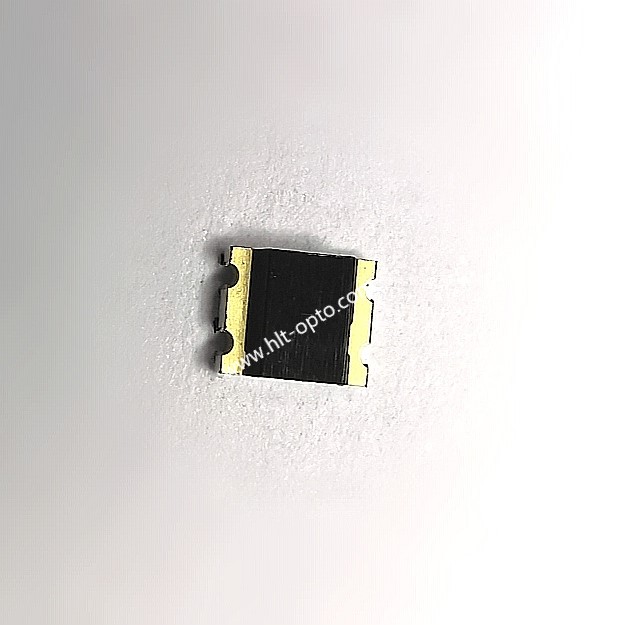

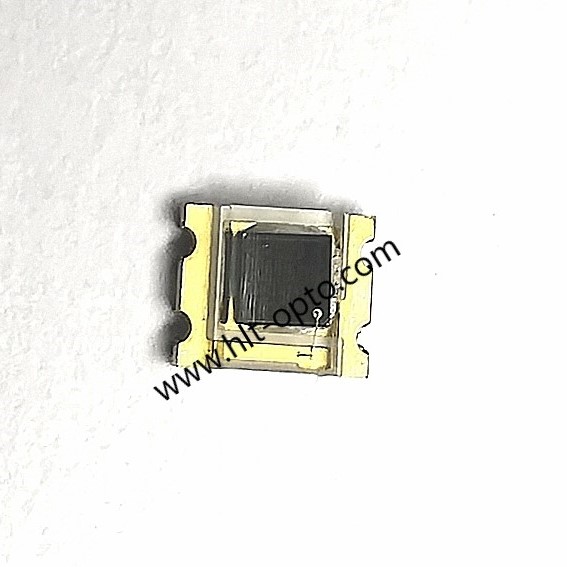

尺寸为：长X宽X高=3.2mmX2.8mmX1.1mm
超大接收面积、产品厚度超薄
用于血氧检测、电子秤感应
智能手表、智能穿戴
智能感应、红外感应
Part Number | Chip | Lens Color | Electrical & Optical Characteristics | Viewing Angle 2θ1/2 | |||
Material | Wavelength λp(nm) | Light Current IL(μA) @VR=5V Ee=1mW/cm2 | Reverse Breakdown Voltage VBR(V)@IR=0.1mA Ee=0mW/cm2 | Reverse Dark Current ID(nA) @VR=10V Ee=0mW/cm2 | |||
Typ. | Min. | Max. | |||||
| SI-Photodiode | 940(400-1100) | Water clear | 6.8 | 30 | 30 | 135 |
| 940(780-1100) | Black | 6.5 | 30 | 30 |
HPD-1211C-QD-TRZ.pdf
