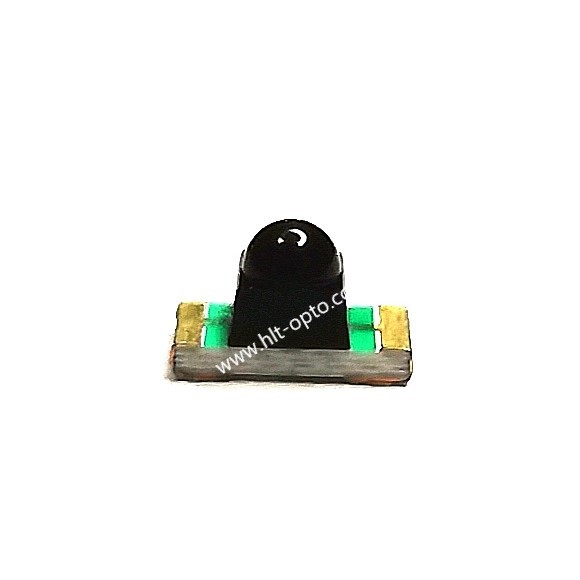

尺寸小：长X宽X高=3.2mmX1.6mmX1.95mm
带聚光透镜
可滤除820nm以下波段光谱
广泛应用于智能感应、智能触控、红外触摸等智能领域
Part Number | Chip | Lens Color | Electrical & Optical Characteristics | Viewing Angle 2θ1/2 | ||||
Material | Wavelength λp(nm) | Light Current Ic(on)(mA) @VCE=5V Ee=1mW/cm2 | Saturation Voltage VCE(sat)( V) @IC =0.1mA Ee=1mW/cm2 | Breakdown Voltage VBR(CEO)(V) @IC=0.1mA Ee=0mW/cm2 | Dark Current ID(nA) @VCE=10V Ee=0mW/cm2 | |||
Typ. | Max. | Min. | Max. | |||||
| NPN | 940(400-1100) | Water | 10 | 0.50 | 30 | 100 | 30 |
| 940(820-1100) | Black | 8 | 0.50 | 30 | 100 | ||
| 940(820-1100) | 10 | 0.50 | 30 | 100 |
HPT-3215D-P2-TRZ.pdf
